RAM-D-202-25-C-202U;- Complete both side socket base ball with 5" Short Arm

RAM-D-202-25-C-202U;- Complete both side socket base ball with 5" Short Arm

1895113
  • $165.99 CAD
    Unit price per
    We have 2 in stock.
Shipping calculated at checkout.

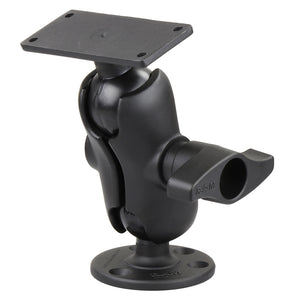

The RAM-D-202-25-C-202U powder-coated, marine-grade aluminum Humminbird Helix mount consists of a short length double socket arm, a 3.68" diameter round base with a 2.25" D size ball, and one 1.5" x 4.5" rectangular plate with a 2.25" D size ball. The round plate contains two mounting holes at 180-degrees and three mounting holes at 120-degrees. The 1.5" x 4.5" rectangular plate contains a 4-hole pattern. The rubber ball and socket technology provides shock and vibration damping, and allows for near-infinite adjustability so you can position your device at the perfect viewing angle. Compatible with the Humminbird Solix or Helix 8, Helix 9, Helix 10, and Helix 12.

PRODUCT DIMENSIONS

Overall Height: 7.875"

SOCKET-TO-SOCKET LENGTH

3.6"

HOLE PATTERN

Rectangular Plate: 1.5" x 4.5"
Round Plate: See Drawing

PLATE SIZE

Top Plate: 2" x 5"
Bottom Plate: 3.68" Diameter

BALL/SOCKET SIZE

D Size (2.25")
